Both the single grow bar plus the addon grow bar (if ordered) come flat packed and need to be inserted into the telescopic arm.
Tip: Leave the assembled grow bar(s) fully extended for several hours to straighten the wire.
Instructions for dual grow bars #

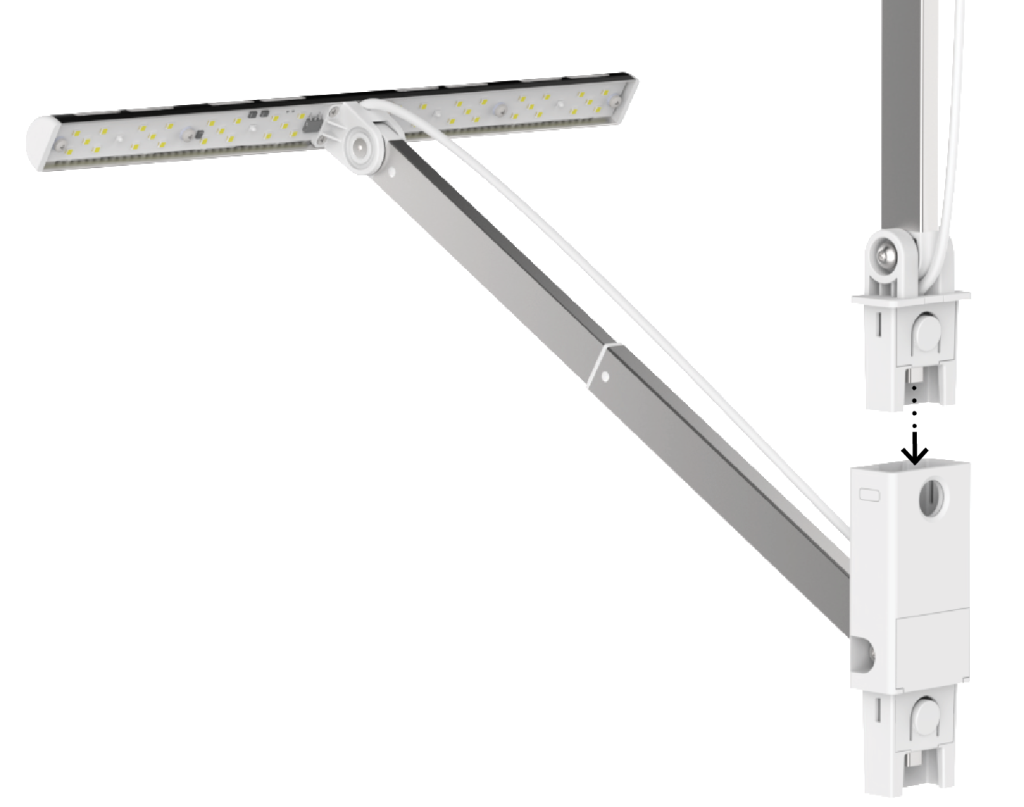

1️⃣ Align the grow bar to the telescopic arm so that the wire is on top.
2️⃣ Insert the grow bar into the telescopic arm, you will feel a click when it is fully inserted.
3️⃣ Repeat for addon grow bar.
Note: totam planter does not support more than two grow bars and will not accept chaining multiple grow bars together.

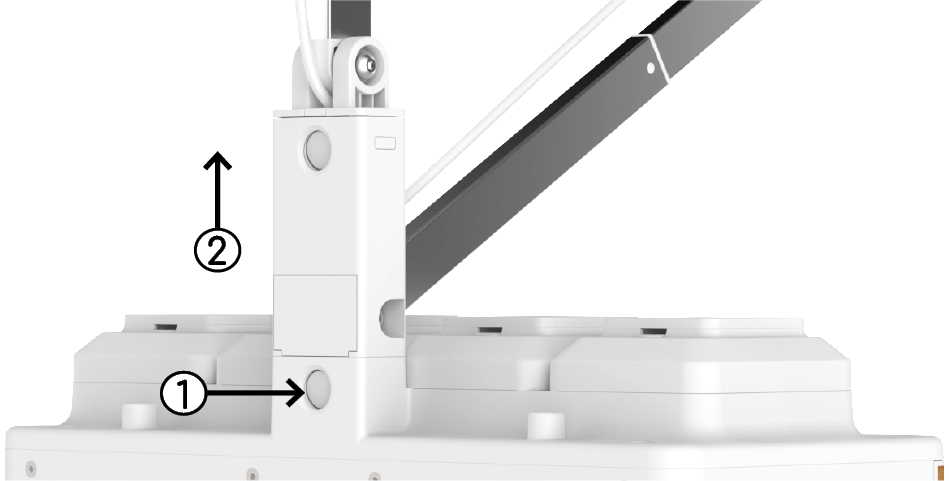

4️⃣ Attach the grow bar(s) to the unit by pushing down until the connector clicks. The force to do this is intentionally high to provide a secure and stable connection.
Instructions for single grow bars #
1️⃣ Align the grow bar to the telescopic arm so that the wire is on top.
2️⃣ Insert the grow bar into the telescopic arm, you will feel a click when it is fully inserted.
3️⃣ Attach the grow bar(s) to the unit by pushing down until the connector clicks. The force to do this is intentionally high to provide a secure and stable connection.
Tightening your grow bar(s) #
You may find that the grow bar(s) occasionally need tightening in order to stay upright. To do so, simply use a cross head screw driver to tighten the screws.
