Electrical Connector #
Tip: removing the water assembly from the top of the unit will make accessing the pump connector easier.
1️⃣ The pump comes preinstalled in the tank. Check Connector A is pushed into the wire track of the tank, to prevent it from being pulled when opening the drawer.

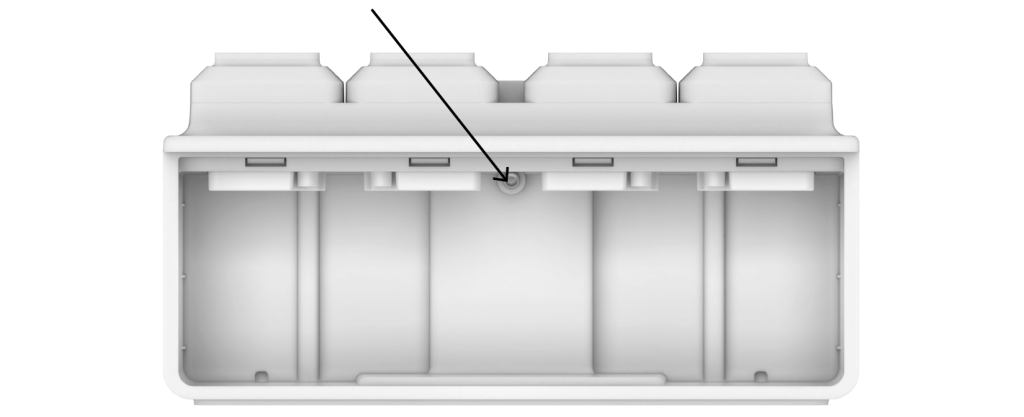

2️⃣ Plug Connector A into the port on the inside of the unit base.
Water Connector #
1️⃣ Insert the water assembly
2️⃣ Open the drawer
3️⃣ Plug Connector B into the top of the pump.
4️⃣ Tuck Connector B into the retainer which helps keep the tube from kinking.
5️⃣ Reinsert the tank cover.
